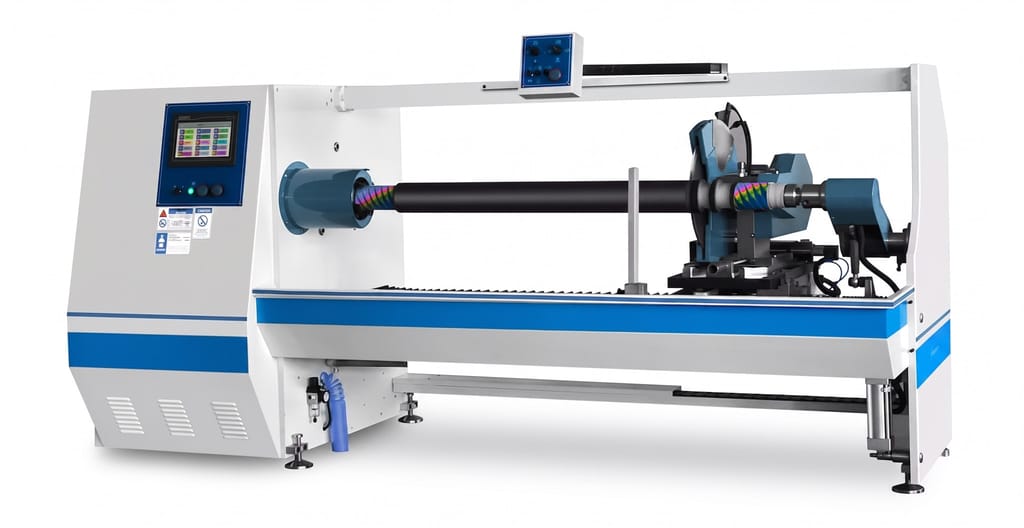

Select A 1600 ADWS
The Select A 1600 ADWS is a fully automatic slitting machine for precise, repeatable slitting of roll material — from PVC and protective film through masking tape to BOPP adhesive tape and foam tape.
The Select A 1600 ADWS
in detail.
The Select A 1600 ADWS is a fully automatic slitting machine for precise, repeatable slitting of roll material — from PVC and protective film through masking tape to BOPP adhesive tape and foam tape. High-precision recirculating ball screws and linear ball rails guide the continuous 3" tension shaft almost effortlessly across the full working width, while a water-cooled cutting system ensures long blade service life even in continuous operation. The 10.2" touch control panel with a Mitsubishi PLC lets you store up to 55 data sets of complete cutting parameters, not just cutting widths — for fast, recurring jobs at a repeat accuracy of ±0.1 mm.
What the Select A 1600 ADWS can do.
All features come as standard — no list of paid options, no hidden licence costs. What you see is what you get.
- Continuous 3" tension shaft — high-precision recirculating ball screws and linear ball rails guide the shaft almost effortlessly across the full working width.
- 55 memory slots — up to 55 storable data sets of complete cutting parameters, not just cutting widths; servo-driven width adjustment for recurring jobs.
- 10.2" touch control panel — a Mitsubishi PLC with 3 servo motors and automatic error detection protects the material and the blade.
- Water-cooled cutting system — automatic cooling-water supply ensures long blade service life even in continuous operation.
- Servo-driven blade-angle adjustment ±8° — for a clean cut even with difficult materials.
- Repeat accuracy ±0.1 mm — exact cutting width from 1 to 1580 mm with a blade diameter of up to 450 mm.
Figures you can rely on.
All figures measured under factory conditions and verified per machine at final acceptance in Wolnzach. Full datasheet available as a PDF on request.
Technical data
Verified
material compatibility.
Every machine is set up at the factory with the materials you use. These material types run on the Select A 1600 ADWS straight from the factory:
Which one fits your web width?
Three machines, the same engineering approach — graded by web width and workflow depth. Click a machine to open it.
Select A 1600 ADWS
The Select A 1600 ADWS is a fully automatic slitting machine for precise, repeatable slitting of roll material — from PVC and protective film through masking tape to BOPP adhesive tape and foam tape.
UA 1850 E ADWS
The UA 1850 E ADWS rewinding and slitting machine combines the Economy rewinder with a 1850 mm working width and a professional slitting system with a 1950 mm…
1900 ADWS
The professional 1900 ADWS slitting machine was developed for fast and precise slitting of a wide variety of media. Particular attention was paid to achieving…
Development and manufacturing work side by side in Wolnzach — so we respond flexibly to customer requirements and find the right solution for every operation.
Looked after from day one.
Buying a Nepata machine is the start of a long-term partnership. Our service team in Wolnzach is your personal point of contact.
Ready for the Select A 1600 ADWS?
We will prepare an individual quotation for you — with your materials, your order volumes and your software integration. A response within one working day.
