Cast carbon film for car styling has to withstand a great deal – the material is therefore thick, sturdy and flexible all at once. This poses a real challenge when it comes to slitting it on a roll. In our material test, we show how the NEPATA slitter performs in this regard.

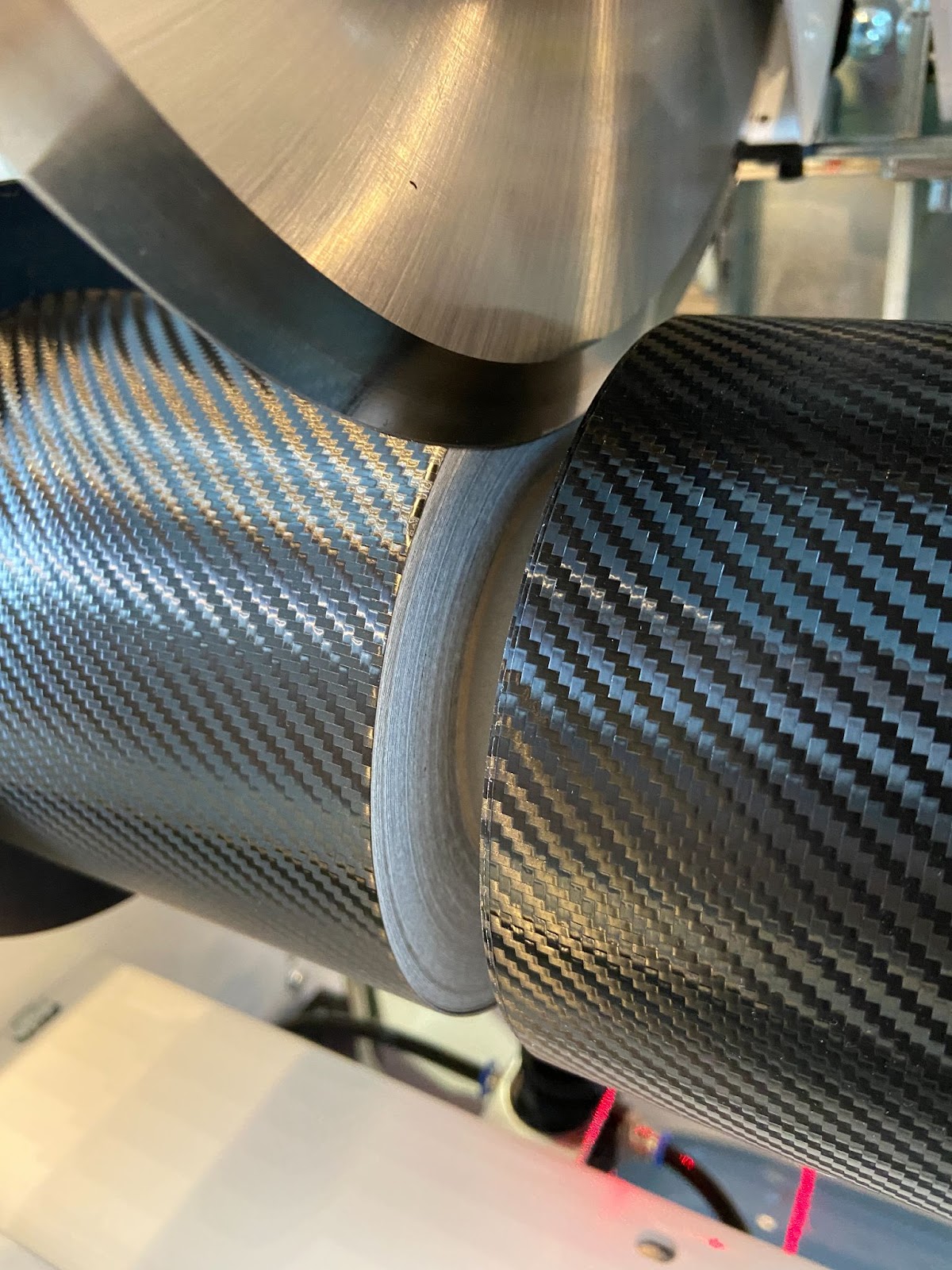

A NEPATA circular blade slits a roll of cast carbon film, producing a cleanly cut edge; a red laser line is used for positioning
Slitting a roll of cast carbon film

The result: straight, clean cut edges

The photos speak for themselves: the cut edges are perfectly straight and clean, with no fraying. The key to this is choosing the right blade for the job. Particularly when working with tough materials such as carbon film, the 5 mm blade with a double-edged grind and the solid carbide blades deliver particularly good results.

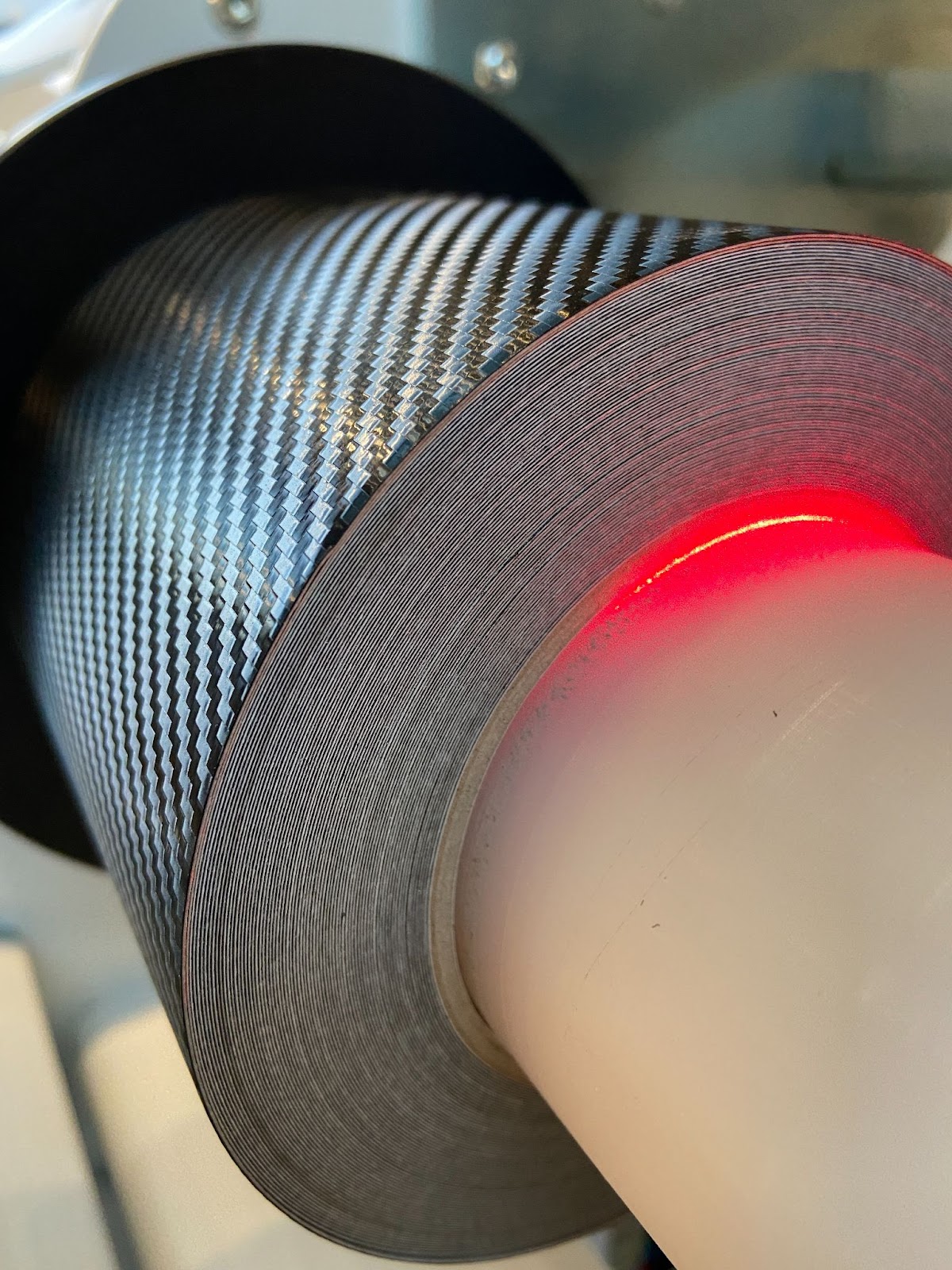

A roll of cast carbon film in the slitting machine, with a cut edge featuring neatly wound layers; a red laser marks the cutting position
The line laser marks the exact cutting position

Lubrication system and line laser

Two further features of the carbon film help to ensure a clean finish:

  • Pad lubrication system: It evenly coats the blade with silicone oil, thereby reducing friction and heat build-up.
  • Line laser: This enables the slitting blade to be positioned with precision.

The following video shows how the automatic lubrication system works.

Play videoPlaying loads content from YouTube.

You can find further material tests on our Instagram and YouTube channels, as well as on the product page for the 1900 ADWS slitting machine. Would you like to have your own material tested? Please get in touch.
